Scaffolding

Type: Scaffolding Tube, GI Pipe, Scaffolding Pipe, Galvanized Scaffolding Pipe

Specification: OD:38.1mm/42.3mm/48.3mm/48.6mm

                           WT:2.0mm/2.5mm/2.75mm/3.0mm/3.25mm/3.85mm/4.0mm
                           LENGTH: 0.3mtr ~ 18mtr
Standard: GB 15831, EN 39, EN 10219, BS 1139, BS 1387-1985, JIS G 3444
Process Type: Hot Rolled, Electric Resistance/High Frequency Welded
End: Square Cut, Plain End, Burr Removed
Surface: Bare/Painted/Light Oiled/Galvanized/Zinc Coating/Primering/Powder Coat

Making: Stenciling/Embossing/Printing or As Customer Required.

Packing: Bundles with strips, Waterproof Paper Wrapped or as clients requirment.



Scaffolding, also called scaffold or staging,[1] is a temporary structure used to support a work crew and materials to aid in the construction, maintenance and repair of buildings, bridges and all other man made structures. Scaffolds are widely used on site to get access to heights and areas that would be otherwise hard to get to.[2] Unsafe scaffolding has the potential to result in death or serious injury. Scaffolding is also used in adapted forms for formwork and shoring, grandstand seating, concert stages, access/viewing towers, exhibition stands, ski ramps, half pipes and art projects.



There are five main types of scaffolding used worldwide today. These are Tube and Coupler (fitting) components, prefabricated modular system scaffold components, H-frame / facade modular system scaffolds, timber scaffolds and bamboo scaffolds (particularly in China). Each type is made from several components which often include:



A base jack or plate which is a load-bearing base for the scaffold.

The standard, the upright component with connector joins.

The ledger, a horizontal brace.

The transom, a horizontal cross-section load-bearing component which holds the batten, board, or decking unit.

Brace diagonal and/or cross section bracing component.

Batten or board decking component used to make the working platform.

Coupler, a fitting used to join components together.

Scaffold tie, used to tie in the scaffold to structures.

Brackets, used to extend the width of working platforms.

Specialized components used to aid in their use as a temporary structure often include heavy duty load bearing transoms, ladders or stairway units for the ingress and egress of the scaffold, beams ladder/unit types used to span obstacles and rubbish chutes used to remove unwanted materials from the scaffold or construction project.

Color

silver , blue , gery , yellow , black or customized is available

Certification

SGS, CE  , TUV



Scaffolding type

Double width uprightness climb ladder scaffolding  , size : 1.35(L)*2(D)m

Double width ladder scaffolding , size : 1.35(L)*2(D)m

Single width uprightness climb ladder scaffolding , size : 0.75(L)*2(D)m

Scaffolding height

from 2m to 40m

Carrying capacity

each plank max 272kg

Main tube

50*5mm , 50*4mm , 50*3mm , 50*2mm



Scaffolding Components

5 rung D/W laddaspsn frame , 5 D/W laddaspsn frame , 4 rung D/W laddaspsn frame , 4 D/W laddaspsn frame , 3 rung D/W laddaspsn frame , 3 D/W laddaspsn frame , Trapdoor platforms , plain platforms , Diagonal braces , Horizontal braces , Caster and adjustable  leg . Diagonal ladder . Skirking board , Stabilizer

Purpose

Boiler , ASM-Aircrafts , Buildung Servicing and Maintenance . Suitable for all kinds of aerial work

Packing

wrapped in Bubble Bag & Export pallet ,extra packaging is available on request.



Shipping method

By DHL ,UPS,TNT ,Fedex ,Air or sea depends on the quantity.


Specification



The Standards(Verticals)

Code

Length(mm)

Tube Thickness(mm)

Tube Diameter(mm)

Surface Treatment

RS-S-3000

3000

3/3.25

48

HDG/Powder coated

RS-S-2500

2500

3/3.25

48

HDG/Powder coated

RS-S-2000

2000

3/3.25

48

HDG/Powder coated

RS-S-1500

1500

3/3.25

48

HDG/Powder coated

RS-S-1000

1000

3/3.25

48

HDG/Powder coated

RS-S-500

500

3/3.25

48

HDG/Powder coated



The Ledgers(Horizontals)

Code

Effective Length(mm)

Tube Thickness(mm)

Tube Diameter

Surface Treatment

RS-L-2000

2000

3/3.25

48

HDG/Powder coated

RS-L-1770

1770

3/3.25

48

HDG/Powder coated

RS-L1000

1000

3/3.25

48

HDG/Powder coated

The Diagonal Brace

Code

Length(mm)

Tube Thickness(mm)

Tube Diameter(mm)

Surface Treatment

RS-D-2411

2411

3

48

HDG/Powder coated

RS-D-2244

2244

3

48

HDG/Powder coated

The bracket

Code

Length(mm)

Tube Thickness(mm)

Tube Diameter(mm)

Surface Treatment

RS-B-730

730

3

48

HDG/Powder coated

Plank

Code

Effective Length(mm)

Width(mm)

Height(mm)

Surface Treatme

GP-2050

2050

480

45

HDG

GP-1820

1820

480

45

HDG

GP-3000

3000

240

45

HDG

GP-2000

2000

240

45

HDG

GP-1000

1000

240

45

HDG

Hollow Head Jack And Jack Base

Code

Length(mm)

Tube Diameter(mm)

Size of Plate(mm)

Surface Treatment

JB-H-60038

600

38

150*120*50*4

HDG

JB-B-60038

600

38

150*150*4

HDG


Loading Ability of ringlock steel scaffolding

No.

Items

Vertical Size

Vertical Load on One Standard

Vertical Load on Four Standards

Summary

1

RINGLOCK STANDARD

2000*48*3.25MM

About 86KN(8.77tons)

Max load 346KN(35.3tons)

This system loading capacity is 173KN(17.6tons) per square meter .

No.

Items

Horizon Size

Horizon Load on One Ledger

2

RINGLOCK LEDGER

2000*48*3.25MM

Max load 5.9KN(0.6ton)

3

RINGLOCK LEDGER

1000*48*3.25MM

Max load 11.7KN(1.2tons)

No.

Items

 Size

Average Load Capacity

4

STEEL PLANK

2000*240*45*1.6MM

About  2KN(0.2ton)

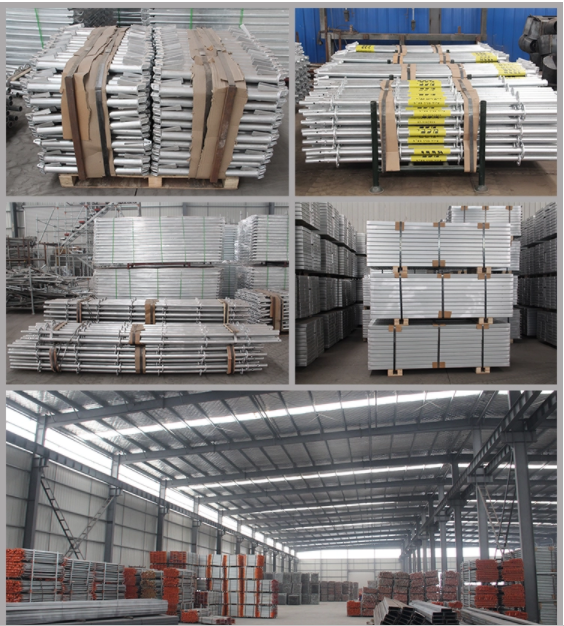

Lightly oiled, Hot dip galvanized, Electro galvanized, Black

Plastic plugs in both ends, Wrapped in waterproof paper or PVC sleeve, and sackcloth with several steel stripsPlastic plugs in both ends.
